It can collaborate with pad printing machine, screen printing machine, and various printing machines, etc., and connect to automation equipment.

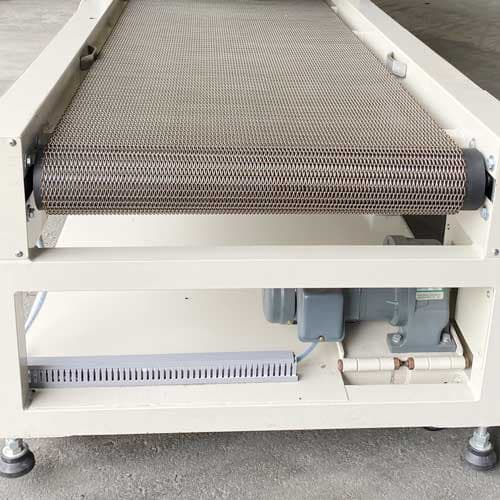

Infrared conveyor oven/Infrared conveyor dryer-LIR-65-320-35

■ Infrared conveyor oven Features:

• Infrared conveyor dryer can be connected to automation equipment.

• Using DC variable motor control enables conveyor rolling speed to be adjusted.

• The circulation system effectively controls the inner space at an even temperature. The special long-axis motor and multi-wing wind wheel are built in the blending system.

• The internal machine is built with stainless steel.

• The external machine is built with galvanized steel sheet.

• The thermal insulation material of the infrared conveying dryer adopts imported heat-resistant thermal insulation rockwool with 4-sided covered.

• Temperature controller - using PID microcomputer meter with automatic calculation function, effectively controlling the stability of the temperature rise curve inside the oven, maintaining the constant temperature state when reaching the set temperature.

• The material of conveyor dryer belt is galvanized iron. The galvanized iron sheet and rockwool can keep the inner temperature very well.

• Electric heating control adopts two sets of SSR electric heating regulators

• The electric heater uses two sets of infrared lamps (3-phase 220V 12KW)

• Protection system (Shihlin Electric) no-fuse breaker 3P30A two groups

• Set an emergency stop switch at 3 different area

■ Infrared conveyor dryer Application fields:

Screen printing, pad printing, flat printing, letterpress printing, sticky label, metal, glass, acrylic, circuit, paper, tetoron, soft and rigid PC, PVC, ABS, PS and other products dried at high and low temparature

■ Fine Cause's perfect service

• We have a strong team lineup, and provide the most complete relevant technical information on the website open and free to download, and have maintenance service bases in North, Central and South Taiwan and overseas

• Device remote connection monitoring to find problems quickly and save time

• Cooperate with customers' automated equipment production line and import various information into PC with E-concept, such as: formula, operating program record, abnormal information, production information, production history, job number... and other data output, and store the information on the computer to achieve the information backup function and Security purpose

• Pad and screen printing, consumables, equipment, etc. for mobile and screen printing, a full range of diversified choices and the convenience of one-time purchase by customers

Under the sustainable development, FineCause can provide various services in R&D, manufacturing, technology, quality, price, delivery and after-sales service. We have various applications for offering related peripheral equipment and business solutions
