Pad printing pads Inspection Machine by Laser
Pad printing pads Inspection Machine by Laser
Product Info
Quick and accurate inspection of printing pad straightness.
FineCause has the service of "customized design of printing pad mold" for pad printing machine. We're seriously strict on inspection as well, which use "laser printing pad straightness inspection machine" to quick and accurately inspect the printing pad.
Pad printing pads Inspection Machine by Laser-FCPL-CS
-

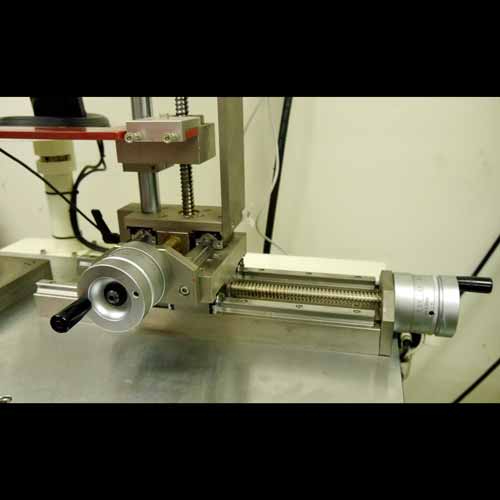

The seat for the laser detection distance is adjusted by the scale hand wheel.
-

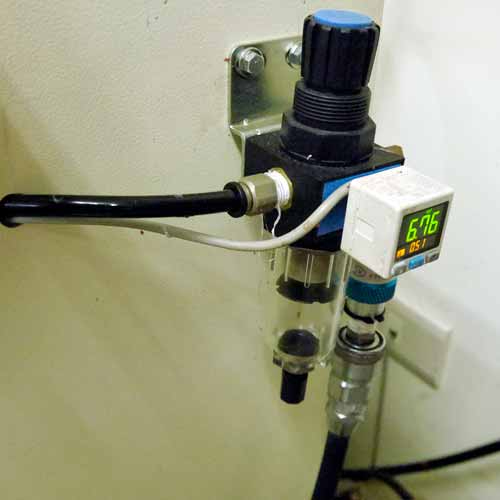

Adopt electronic air pressure detection.
-

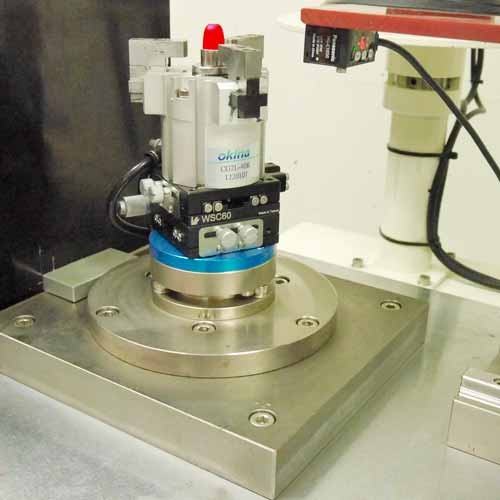

Suitable for Ø12~Ø30mm printing pad holder (3 jaw chuck clamping).
-
The printing pad fixing mechanism can be designed according to the requirements, so both long and short printing pad can be shared.
-
-
Control by precise servo motor. The detection speed and turn number can be set.
-
Adjustable laser head detection position in X,Y,Z direction.
-
Adopt color touch panel. The inspection standards can be set.
-
The printing pad straightness inspection machine will automatically distinguish inspection result that is OK or NG.
-
When the tolerance value is exceeded, the warning sound and the text marquee display notification.
-
-
Automatically record measurement data to the computer.
-
Data transfer to computer Excel table.
-
Specifications
Model | FCPL-CS |
---|---|
Applicable Printing Pad Holder Spec. | Ø12~30 mm |
Power Supply | 220V, Single Phase |
Machine Size (cm) | 130x60x199cm |
Net Weight | 220kg |
