Automatic spray coating machine

FJP-001

FJP-001

Automatic spray coating machine

Equip electrostatic static eliminator. The Nozzles has spurting at the same time(two set)with adjustable angel structure. Control by servo motor sliding sleeve structure, available for set up the moving distance.

Add RFQ RFQ results

Product Info

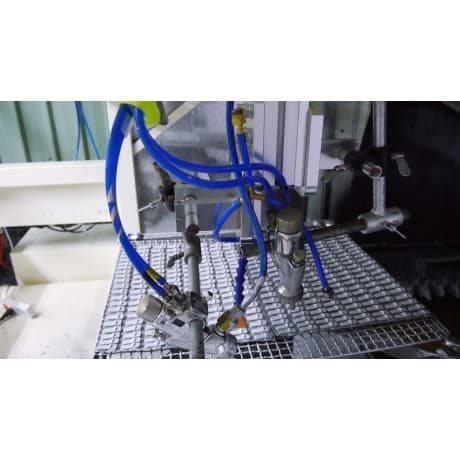

Automatic spray coating machine/Automatic spray painting machineFJP-001

Equip electrostatic static eliminator
The Nozzles has spurting at the same time (two set ) with adjustable angle structure.

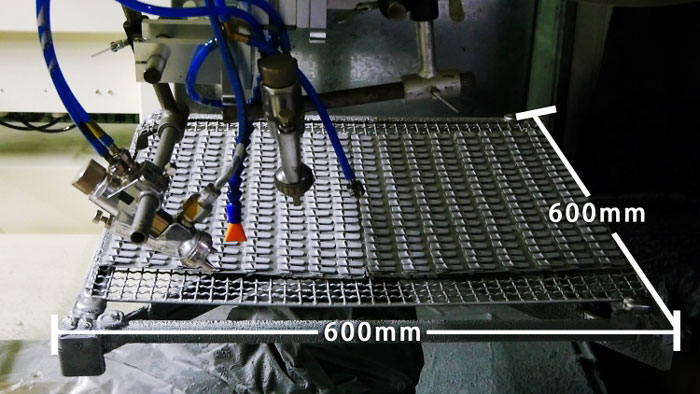

The net platform could be spun the direction on clockwise or counterclockwise.
Control by servo motor sliding sleeve structure, available for set up the moving distance.

Sliding sleeve moving distance :

Left / Right :800 mm
Back / Forward :800 mm
The fastest moving Speed : 500 mm/sec (0.5 m/sec)
The minimum moving distance : 1mm

▼ It could spun the direction on clockwise or counterclockwise.

Specifications

Model	FJP-001Automatic Jet Printer
Max left / right Jet Print (mm)	500 mm/seconds
Max Print Area (mm)	800x800 mm
The mini moving distance (mm)	1 mm
Dimension (cm)	L:198 W:154 H:186 cm
Net Weight (kg)	1000 kg
