FC-164BRC-MR

Indexing table 4 color pad printing machine

FC-164BRC-MR

Indexing table 4 color pad printing machine

60 mm sealed. Ink Cup and 70 x 140 mm special size steel plate.Hot Air System. Speed up the ink evaporation.Special design jig clamping structure may change to other product jigs. The pad printing machine uses Japan DAIDO Oiless Bearing system
Add RFQ RFQ results

Product Info




Indexing table 4 color pad printing machine-FC-164BRC-MR(old FC-404-OP-MR)

Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

 Features:

  • The pad printing machine uses a color touch screen, built-in five different languages-Chinese (Traditional), English, Indonesian, Vietnamese and Thai.

  • The pad printing machine uses Exclusive Patented Adjustable Ink-Scrape Mechanism (Patent No. M311585)

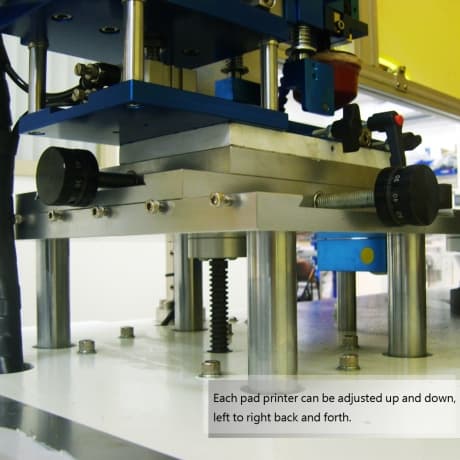

  • 4 independent pad printers. Each printer can be adjusted their base position for better printing performance.

  • Steel Plate Base w/Adjustable XY-Axis and Angle

  • Auto Sensing Entrance Air Pressure. The machine stops and the alarm is activated when it’s below the set value.

  • Electronic Static eliminator dusting plastic surface before Printing to increase the printing quality.

  • Use 7 inches color touch panel w/Panasonic PLC Controller

  • 60 mm sealed. Ink Cup and 70 x 140 mm special size steel plate.

  • Hot Air System. Speed up the ink evaporation.

  • Special design jig clamping structure may change to other product jigs.

  • The pad printing machine uses Japan DAIDO Oiless Bearing system



Suitable for :

Toys, Stationery, Jewelry, Watch Surface, Eelectronic Products, Switches, Buttons, Metalfinished and semi-finished products, Ceramic Glass products, uneven surface printing.

Additional precision indexing plate makes it easy to access the materials. It is also able to expand the automation peripherals to increase production.

Specifications

Model FC-164BRC-MR(old FC-404-OP-MR)
Color 4
 Index table (cm) 800mm
Cycles/hr  900~1200 Pcs
Machine Size (cm)  L:151 W:141 H:160
Weight 1000KG
Pressure
(kg/cm2 psi)
4~6
Power (A)
Ampere
5
Voltage (V) 220V
Max. Printing Area
(mm)
Ø50
Max. Height of
Printed Object
(mm)
180mm
Height -
Pad Stand to Steel Plate
(mm)
100
Max.
Steel Plate Size
(mm)
L:140 W:70 H:10
