FC-261/FC-291CNC 1-Color Long Image Pad Printing Machine

High-Precision Pad Printer with Horizontal Scraping Mechanism

The FC-261 / FC-291CNC Pad Printing Machine is designed for long-image and large-area printing.
Featuring a horizontal scraping mechanism, adjustable stroke, and CNC control, it offers exceptional flexibility and precision for diverse printing applications.

Key Features of the Horizontal Scraping Pad Printer

1. Adjustable Horizontal Scraping Mechanism

• The new horizontal scraping system allows stroke adjustment, making it compatible with both large and small steel plates (clichés).

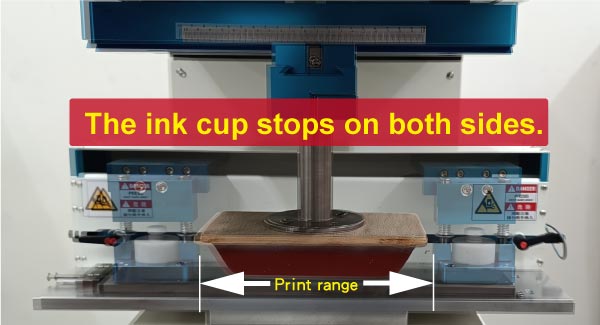

• The ink cup movement can be set to stop on the left, right, or both sides through the HMI interface, offering greater adaptability for various product shapes.

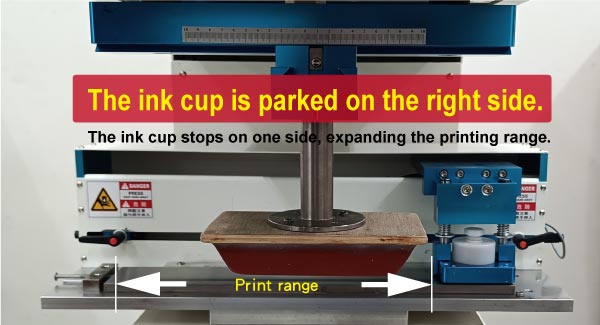

2. Increased Printing Area with Left-Right Ink Cup Movement

• The ink cup moves horizontally, expanding the maximum printable image size.

• Equipped with a pressure-regulating ink scraping system (Patent No. M311585), the scraping pressure can be adjusted easily for optimal ink transfer.

Flexible Setup Options

XY Adjustable Cliché Base

• Optional XY-adjustable cliché base allows fine-tuning in the front, rear, left, and right directions to achieve perfect alignment.

Compatible with Thin Cliché (0.5 mm)

• Add a thin cliché base for quick and cost-effective plate changes.

• Ideal for small-batch, multi-design production, minimizing setup time and cost.

• All FineCause pad printing machines can be retrofitted to use thin cliché for maximum efficiency.

Smart Control & Monitoring

7.0" Color TFT Touch Screen

• Intuitive interface showing sensor positions and system status in real time.

• Abnormal alarm display helps operators quickly identify and fix issues.

• Electronic air pressure sensing automatically detects insufficient air supply.

Smart Counting & Safety Functions

• Pad usage count and cliché usage count can be preset — the machine stops automatically when limits are reached.

• PLC control system enables easy function upgrades and adjustments.

• Display of pneumatic cylinder running speed on screen for better process control.

Advanced Software Features

• Multiple recipe storage for fast production switching.

• Built-in 5 languages: Traditional Chinese, English, Indonesian, Vietnamese, and Thai.

• Production history tracking with smart bar chart — view productivity, run time, and speed from the past 30 days.

• WiFi connectivity: access real-time productivity reports anytime via the FineCause APP.

Robust Structure & Safety Design

• Made from sheet metal with powder coating, the body is integrally formed (Patent No. M453283) for superior durability.

• The bushing component set ensures smoother and more stable operation, improving print quality.

• Anti-drop pad design prevents pad descent when air pressure is released, protecting the printing pad from damage.

Why Choose the FC-261 / 291CNC Pad Printer?

• Designed for long image and large-area printing.

• Customizable, stable, and easy to operate.

• Built for high-quality, efficient pad printing across various product types.

 FAQ

Q: What is the advantage of a horizontal scraping pad printer?
A: It provides smoother ink distribution and supports longer image printing, improving consistency and print quality.

Q: Can I use thin cliché with the FC-261 / 291CNC Pad Printer?
A: Yes, it supports 0.5 mm thin clichés, making frequent design changes faster and more cost-effective.
