UV Laser Engraving Machine/Laser Engraver

BFC-08013-UV5-2

BFC-08013-UV5-2

UV Laser Engraving Machine/Laser Engraver

UV Laser Engraving Machine is capable of engraving on a wide range of materials, including glass, leather, and wood—achieving multiple applications with one machine. Featuring a high-quality laser source and galvanometer scanning, it delivers high processing efficiency. Laser power output remains stable, and the frequency is continuously adjustable via engraving software.

Add RFQ RFQ results

Product Info

BFC-08013-UV5-2

UV Laser Engraving Machine/Laser Engraver

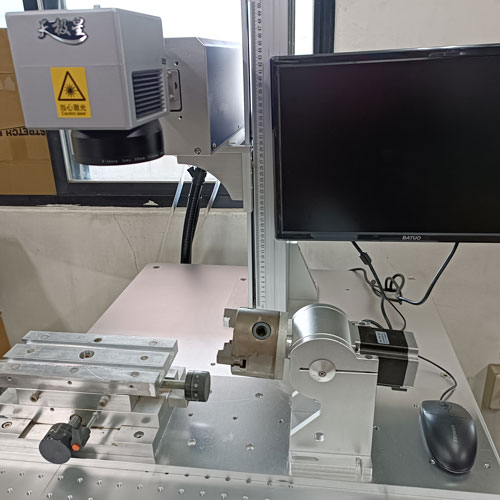

When paired with a rotary axis, it supports 360-degree engraving, including full-wrap engraving on tapered cups. Most bottles and cups can rotate automatically for curved surface engraving without the need for custom fixtures.

Advantages of Laser Engraving:

Delivers clear, detailed patterns, even for intricate designs
No fading from touch, abrasion, or wiping
Non-contact processing: engraves even on uneven surfaces
No need for time-consuming and costly mold or plate making
Suitable for small-batch production with flexible content changes
High absorption across various materials enables high-contrast engraving
Minimizes thermal and internal damage to engraved areas

BFC-08013-UV5-2 – UV Laser Engraving Machine/Laser Engraver

Key Features:

Engraves on both metal and non-metal materials, making it truly versatile
Equipped with a high-quality UV laser source for consistent performance
Galvanometer-based scanning ensures fast and efficient processing
Laser power and frequency are software-controlled and adjustable
Comes with an X-Y adjustable platform for faster alignment on flat objects
Non-contact processing avoids material contamination
Beam diameter is smaller than fiber lasers, enabling ultra-precise engraving

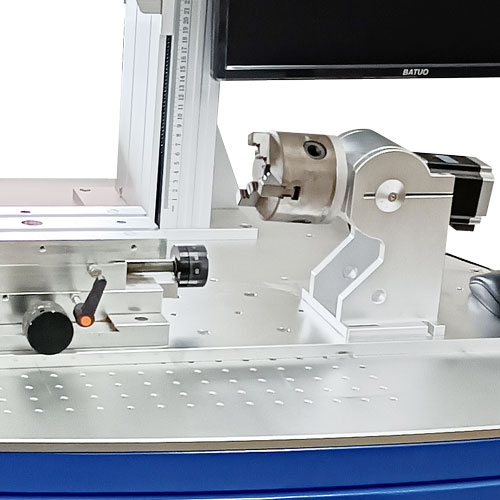

Rotary Engraving Capability:

Supports 360-degree rotary engraving, even on tapered cups
No need for custom jigs—most bottles and cups can rotate automatically using the rotary axis for curved surface engraving

Laser Engraving Machines	Fiber Laser Engraving Machine	UV Laser Engraving Machine	CO2 Laser Engraving Machine
Laser Spot Size	0.03 mm	0.03 mm	1.8 mm
Laser Wavelength	1064 nm	355 nm	9.3μm~9300nm
	The commonly used wavelength for fiber laser is 1064 nm, which falls within the near-infrared range.	Highly absorbable by a wide range of materials, enabling full-color marking.	CO2 laser is the only option for engraving on acrylic; highly suitable for signage, displays, and nameplates.
	Fiber lasers often use ytterbium-doped (Yb) fibers for higher beam quality.	Allows micro-engraving and minimal thermal damage to surfaces or interiors.	Wavelength is easily absorbed by transparent materials, often used for engraving on thin films.
	The excitation wavelength for fiber lasers is usually 915 nm or 976 nm, but the stable output wavelength is 1064 nm.
Engraving Area	100100 mm or 200200 mm (flat)	100100 mm or 200200 mm (flat)	110110 mm or 175175 mm (flat)
Practical Applications	High wavelength absorption makes it ideal for metal marking (e.g., black marking, oxidation, surface polishing), stainless steel, aluminum, copper, ceramics, etc.	Ideal for high-precision devices and a variety of non-metal materials: wood, glass, crystal, leather, ceramics, paper, plastic, printed boards, etc.	Suitable for engraving on acrylic, fabric, leather, paper, wood, bamboo, plastic, rubber, silicone, dual-color boards, etc.
Common Advantages	1. Fine graphics are clearly and sharply presented
	2. Resistant to fading from rubbing, scratching, and wiping
	3. Non-contact engraving allows marking on uneven surfaces
	4. No need for plate or mold development, saving time and cost
	5. Small batch production with flexible engraving content

Specifications

Specification	BFC-08013-UV5-2
Laser Power	5W
Laser Type	355nm
Control System	Golden Orange (User-friendly interface)
Operating Voltage	110V/220V ,50/60Hz
Power Consumption	≤1000W
Engraving Area	100100mm or 200200mm (flatbed)
Engraving Speed	≤7000 mm/s (depending on material and desired effect)
Focusing Method	Manual
Positioning Accuracy	<0.01mm
Minimum Engraving Size	0.5x0.5mm
Communication Interface	USB
Supported File Formats	DXF, BMP, PLT, AI, JPG, etc.
Cooling Method	Water cooling (with chiller included)
Display Screen	19-inch
Machine Dimensions	8065150cm (LWH)
