6J003-1

Pad printing machine/pad printing-semi automatic pad printer/pad printing technology

6J003-1

Pad printing machine/pad printing-semi automatic pad printer/pad printing technology

Patent pad printing technology: apply thermostatic pad printer to control the ink temperature to achieve a more ideal printing effect. The pad printing ink layer thickness is able to be increased. The ink deposit is complete and clean. High-end pad printers will have the function of ink temperature control in the future to improve ink picks phenomenon. Raising the ink temperature during printing can accelerate the volatilization speed during ink transfer to achieve complete ink deposit and increase the ink opacity greatly.
Add RFQ RFQ results

Product Info

 ▲ From the video, it has been proved experimentally:

  • The higher the ink temperature is, the lower the viscosity and the faster the volatilization speed are!

  • After raising the ink temperature, it produces amazing results!

  • 【The ink absorption capacity】 of the printing pad and 【the ink deposit effect are increased】!

  • The burrs and ink picks issue is improved!

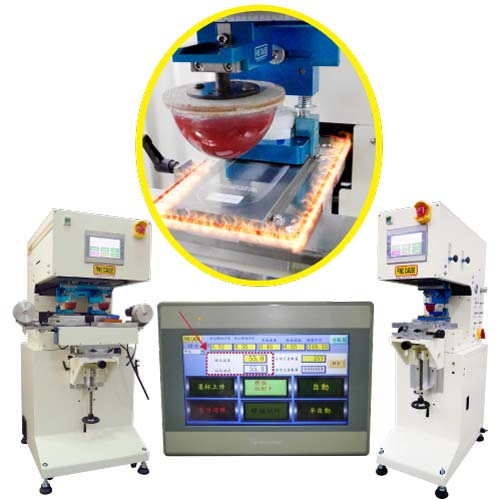

The actual printing video for the pad printer which is equipped with thermostatic printing system.



pad printing machine/pad printing-semi automatic pad printer/pad printing technology

Do you often have these printing issues?

  • Printing quality is not stable. It takes time to adjust the inks…

  • There are often having burrs or ink picks. Or there will be no ink picks in printing initially; but the ink picks will occur after continuous printing.

  • Long time printing makes the ink volatilization variable. It causes the printed pattern to be incomplete and missing corners in printing!

  • Incomplete ink deposit causes the ink layer to be too thin, resulting in color difference!

Using the thermostatic pad printer will be right! Utilizing the control of the ink temperature to achieve a more ideal printing effect will be the mainstream of the future pad printing world. High-end pad printing machines will have the function of ink temperature control in the future.

👉All pad printing equipment produced by FineCause can be equipped with a thermostatic printing system.



New trend of pad printing

  • Whether the temperature is 15 or 30 degree Celsius today, applying a thermostatic system to maintain the ink temperature, which is higher than normal temperature, such as 38 degree Celsius, will make the temperature condition stabilized duting pad printing production process. Reducing a variable makes the control of production process easier.




  • In the pad printing process, it is necessary to transfer the ink when the ink is half-dry and half-wet to achieve perfectly complete ink deposit. Therefore, most pad printing cliche depth is set at 0.025mm in the past. With a thermostatic system, the cliche depth can be adjusted to 0.035mm. In addition, raising the ink temperature during printing can promote the volatilization speed during ink transfer to achieve complete ink deposit and 【greatly improve the ink opacity】. So the film thickness that was not possible in previous pad printing can be accomplished.




  • The thermostatic system increases the ink temperature during printing, which will effectively reduce the ink viscosity; thereby solving the issue of ink picks that often occurs in printing. From now on, you longer need extender base.




After the pad printing machine is equipped with a thermostatic temperature printing system, the temperature of the cliche/steel plate can be control. By increasing the ink temperature, the complete ink deposit can be maintained constantly.

Printing conditions and quality are not affected by external ambient temperature.

【Taiwan Invention Patent】Invention No. I762245

【Taiwan Invention Patent】Invention No. I762245

Suggested pad printer:FC-161ANC ink cup Ø60mm pad printer with thermostatic printing system

FC-161ANC Ink cup pad printer 60Ø/Thermostatic pad printing machine

This is a standard pad printer, which is fabricated in mass production; so a 【preferential price】 can be provided to everyone. The device and features are 【value for money】. Include patent pressure-regulating ink scraping system to adjust the ink cup doctoring pressure easily and complete ink cup installation simply; the ink scraping is cleaner. Additionally equipped with 【pad printer thermostatic printing system】 can keep the ink temperature and make the printing quality stable. ... please click here for full introduction.



 Suggested pad printer:FC-161ARC-CG single color ink cup pad printer with carousel with 8 stations

FC-161ARC-CG Single Color Pad Printer with Index Table-Include Thermostatic Printing System and Hot Air Mechanism

The pad printer with carousel adopts 【indexing table with 8 stations】. Equipped with 【hot air device, which can optimize the drying speed of ink】. The installation of 【thermostatic printing system】 can 【increase the volatilization speed to promote the ink deposit of printing pad】. 【The viscosity of printing ink can be reduced.】【 The opacity effect can be increased.】 Bushing component set makes the printer run more smoothly and stably. 【The printing speed is adjustable. The printing is accurate and fast.】. ...please click here for full introduction.



All pad printing equipment produced by FineCause can be equipped with a thermostatic printing system. Standard pad printers, custom pad printing machines, semi automatic pad printers, automatic pad printing machines, single color pad printers, and multiple color pad printing machines all are able to be installed.

👉Good product is not afraid that you trying them out.

Now the thermostatic system is during the promotions; Moreover, 👍we provide a 14-day free trial service in Taiwan.

★Special offer for promotion/apply for a trial. Please join to the inquiry form or click here to fill in the form.



FINECAUSE, INNOVATIVE, ADVANCED, EXPERTISED, MAKE BETTER FOR YOU
