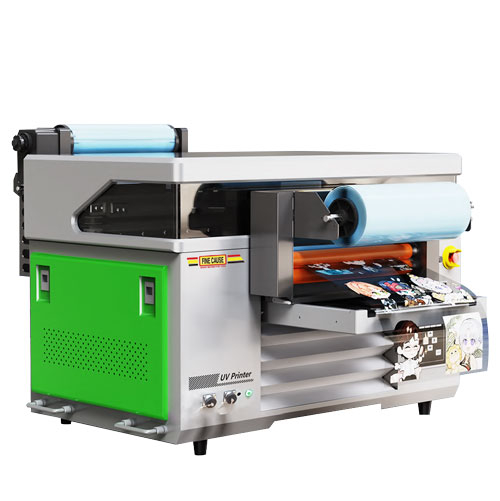

B001-FC4060UV

High-Speed UV Direct Printer｜Multifunctional UV Printers

Multi-Purpose, High-Efficiency Printing Solution

The B001-FC4060UV high-speed UV inkjet printer is designed for more than just flat-surface printing — it can also perform 360° cylindrical printing and roll-to-roll printing (such as crystal film).
This truly 3-in-1 UV direct printer offers wide application flexibility.
Featuring an Epson -Micro-voltage printhead, it ensures stable performance and excellent print quality.
The Epson printhead with PrecisionCore MicroTFP piezoelectric print chip delivers high-definition image quality with smooth gradients and rich color saturation—ideal for precision printing applications.

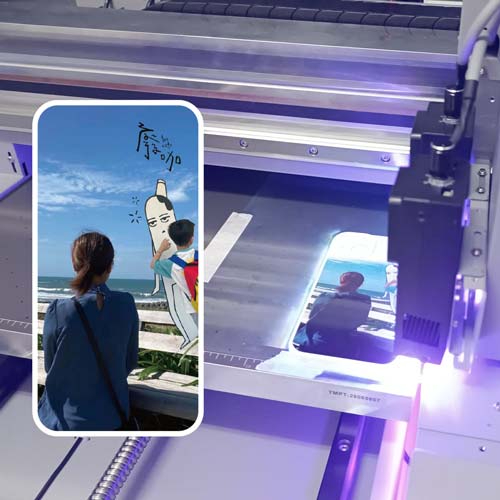

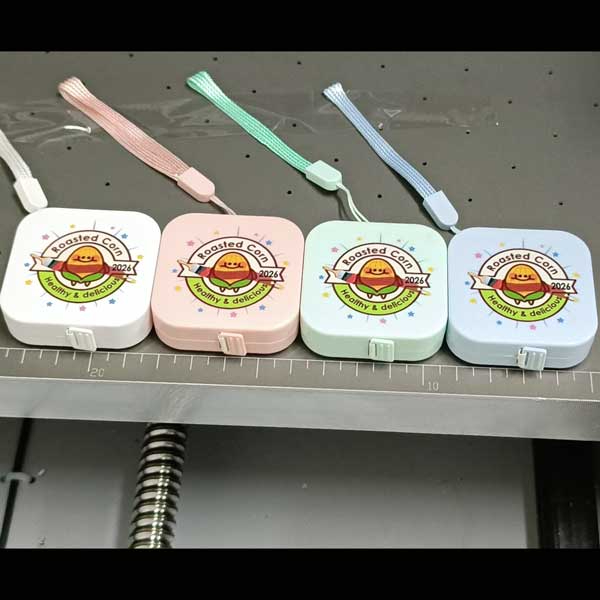

▲ Flat material printing / phone case direct printing

▲ Roll material printing / crystal sticker printing

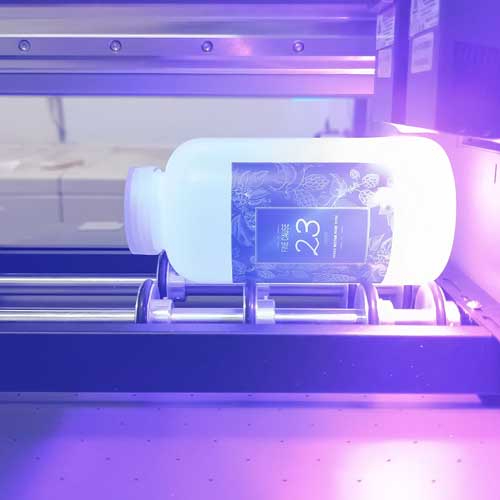

▲ Cylindrical printing / bottle and container direct printing

UV Inkjet Printing Technology Highlights

Adopts the latest-generation MicroTFP PrecisionCore print chip, providing clean and smooth color blocks.
The near-perfectly round ink droplets ensure precise positioning, supporting variable droplet technology for grayscale printing, reduced graininess, and smoother color transitions.
Delivers vibrant, high-saturation color output with exceptional clarity.

Main Advantages of the High-Speed UV Inkjet Printer

• Simple operation process and easy to learn

• Reduces printing costs with lower ink consumption and eco-friendly performance

• Compact size, easy to move, and space-saving

• High color saturation and minimal color deviation

• No need for plate making, ideal for small-lot and customized production

• Low-temperature UV LED curing suitable for various materials (e.g., PVC, PET, acrylic board)

• Supports multiple ink effects:
  • White ink for strong color contrast
  • Transparent varnish for gloss, waterproofing, and scratch resistance
  • Embossed and glow-in-the-dark effects for 3D texture

Key Features of the B001-FC4060UV High-Speed UV Direct Printer

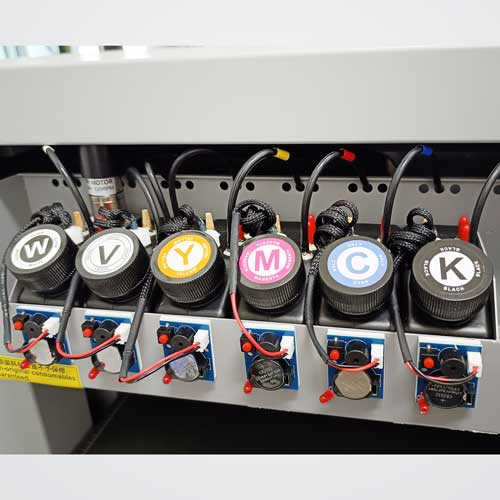

▲ Ink set: W–White Ink / V–Varnish + CMYK (6-bottle UV ink system)

• Ink level monitoring system: Automatic alarm and ink refilling without stopping the machine

• Dual printheads: Epson Micro-voltage printhead, Dual-direction high-speed printing for greater productivity

• Special effects printing: Supports embossing, gloss varnish, and glow-in-the-dark effects

• Crystal sticker function: Automatic lamination and peeling, compatible with hot stamping (gold/silver)

• Supported file formats: JPG, PNG, PSD, EPS, PDF

• Variable data printing: Supports batch production and customized individual printing

• Printing pass options: 6 PASS / 8 PASS (selectable based on speed and quality requirements)

Applicable Materials

PVC, ABS, acrylic, metal, plastic, PET film, aluminum foil, wood, glass, crystal, stone, leather, fabric, and other flat or curved surfaces.

Guidelines for Choosing a UV Inkjet Printer

Before purchasing a high-speed UV direct printer, consider the following:

• Evaluate available space and production requirements to determine machine size and type

• Choose upgradeable systems to reduce future replacement costs

• Prefer brands with a professional Taiwan-based support team

• Ensure warranty and on-site testing service

• Select printers with easy maintenance and user-friendly interfaces

• Choose brands that provide hands-on training and after-sales support

Printing Specifications

• Maximum print height: 15 cm

• Printable size:
  • Flat: 38 × 58 cm
  • Roll: 38 cm width × unlimited length
  • Cylinder: width within 38 cm (diameter/height ≤ 15 cm)

• Printing passes: 6 PASS / 8 PASS

• Printing resolution: 720 / 1280 × 2880 × 5670 dpi

Frequently Asked Questions (Q&A)

Q: Which operating systems are supported?
A: Compatible with Windows 7, 8, 10, and 11.

Q: How do I clean the UV printhead?
A: The printer supports both automatic and manual cleaning.
Automatic cleaning is sufficient for daily use; manual cleaning is used only when the printhead is clogged.

Q: What is a Micro-voltage printhead?
A: A piezoelectric printhead ejects ink through the vibration of piezo ceramic elements under electric voltage.
This technology does not require ink heating, and it precisely controls droplet size and shape through mechanical pressure, ensuring high precision, stability, and wide ink compatibility.

Q: Can dual printheads operate individually?
A: Yes, it can be set to single or dual printing modes.
The second printhead is mainly for varnish; if varnish printing is not enabled, it remains idle.

Q: Does it have ink level monitoring and automatic refilling?
A: Yes, when the ink level is low, an alarm will activate, and ink can be refilled without stopping the printer.

Q: What does “PASS” mean in UV printing?
A: “PASS” refers to the number of printhead passes over a given area.
More passes = higher quality but slower speed; fewer passes = faster printing but lower coverage.
You can adjust the PASS number according to the print job’s quality and delivery time requirements.

Q: What special effects can this UV printer achieve, and how do they work?
A: Supports embossed, gloss varnish, and glow-in-the-dark effects.
Embossed effects use multiple white ink layers for thickness; gloss effects use transparent varnish for shine, waterproofing, and scratch resistance; glow effects are achieved using fluorescent ink.

Professional UV Inkjet Printer for Unlimited Possibilities

The B001-FC4060UV High-Speed UV Direct Printer combines performance, precision, and versatility.
Whether for small-batch custom printing or diverse material production, it delivers superior results with ease.
Supported and warranted by Fine Cause Taiwan, it is your reliable choice for high-quality and flexible UV printing production.

Fine Cause also provides UV printing services — click here for OEM/ODM printing solutions.
