FA-300 400THF Desktop screen printer with Vacuum

■ Features of screen printing machine:

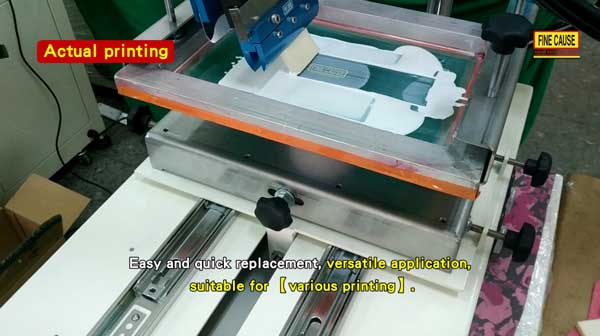

• Dual-purpose: It can be used with both the suction platform and regular platform. After removing the suction platform, the jigs can be fixed on the regular platform. Changing  the platform is easy and fast. It has a wide range of applications and is suitable for various types of printing.

• Suction platform

• • The screen printing machine is equipped with a suction platform, which will suction when the slide table advances.

  • The platform of the screen printer can be adjusted in X and Y axes as well as angles.

• • The platform of the screen printer can move forward and backward, ensuring that the printed objects do not obstruct the line of sight during loading and unloading.

• Magnetic squeegee clip

  • With magnetic squeegee clip (Patent No. M390871), the squeegee position can be slided easily and the adjustment or disassembly is also simple.

• The sliding table's forward and backward movement speed is adjustable, increasing printing productivity.

• Adjustable left and right movement speeds.

• Adjusting the operation time of the squeegee and flood bar can increase both productivity and printing quality.

• Removing the suction platform reveals screw holes on the bottom platform, facilitating the fixing of jigs.

• The screen stencil does not lifting during printing.

• Printing without the need to lift the screen stencil saves ink since the ink evaporation will be slow.

• Not having to lift the screen stencil during printing makes it less prone to screen blockages.

• Printing without the need to lift the screen stencil prevents dust from flying and dander from sticking.

• The first choice for getting started with semi-automatic screen printing machines.

• Made in Taiwan

• Compact in size, it can be placed directly on a desktop for convenient use, making it easy to transport and cost-effective.

• Ink scraping by pneumatic cylinder ensures stable and effortless operation.
