Dual-Axis Servo Motor Screen Printing Machine with Suction Function
Dual-Axis Servo Motor Screen Printing Machine with Suction Function
Product Info
FA-500TXF-MY Dual-Axis Servo Motor Screen Printing Machine with Suction Function
-
Precision Servo Mechanism
-

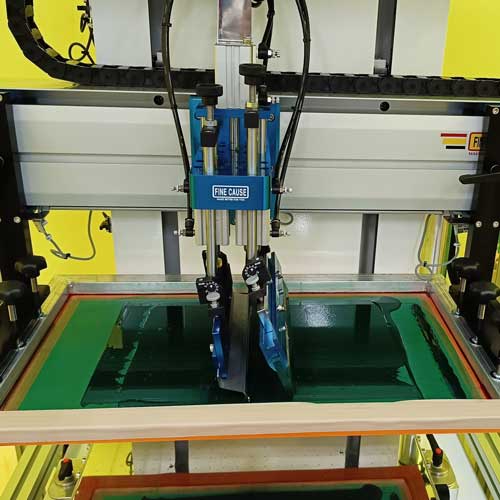

Squeegee printing stroke and screen stencil lifting adopt servo motor + linear guide rail + ball screw structure
-
Ensures high positioning accuracy and stable movement, fully optimizing printing quality
-
-
Comprehensive Safety Protection Design
-
Equipped with a transparent PVC dust cover to effectively block airborne particles and dust
-
Light curtain sensors on both sides of the machine prevent hand-clamping accidents, ensuring operator safety
-
-
Customized Suction Positioning Table
-
-

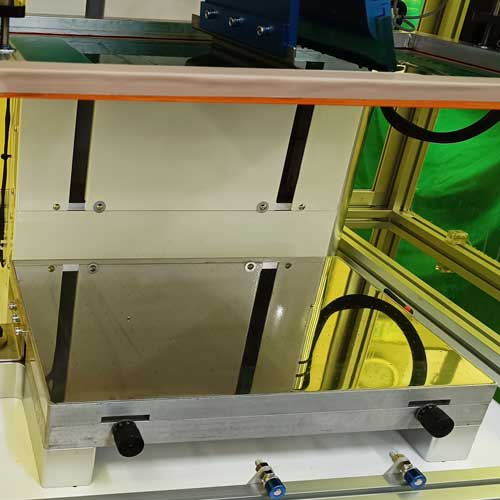

Equipped with a pin-lift table, with a suction positioning system tailored to the customer's product characteristics
-
Enhances jig stability and precise positioning, improving overall printing efficiency
-
-
High-Efficiency Touchscreen Interface
-

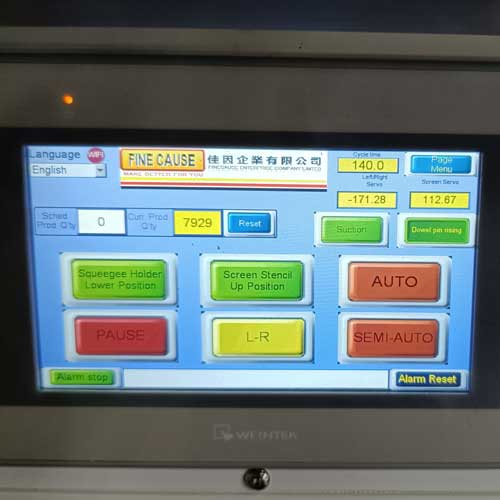

7" color touchscreen with intuitive, user-friendly operation
-
Abnormal conditions displayed in real-time via marquee alerts to assist in quick troubleshooting
-
-
Highly Flexible PLC Control System
-
Utilizes a programmable logic controller (PLC) with strong expandability
-
Supports servo slider speed setting and display
-
Built-in multiple parameter memory for quick switching between product settings
-
-
Patented Magnetic Squeegee Clamp (Patent No. M390871)
-
Adjustable sliding squeegee position, quick disassembly, and more flexible, time-saving adjustments
-
-
Pneumatic Squeegee Holder Lifting Design
-
Adopts vertical linear lifting to replace the traditional manual tilting method
-
Effectively prevents squeegee height deviation, ensuring consistent printing quality
-
Simplifies screen cleaning, reducing ink leakage and contamination risks
-
-
Multi-Language Operating System
-
Built-in five languages: English, Traditional Chinese, Indonesian, Vietnamese, and Thai
-
Ideal for multinational production lines, with one-touch switching
-
-
Production History & Data Tracking
-
Built-in smart chart records the last 30 days of production capacity, operating time, printing speed, etc
-
Facilitates production tracking and management
-
-
Smart Factory APP Function (Optional)
-
Allows remote monitoring of machine operation and production data via mobile phone or tablet
-
Helps enterprises implement smart factory management
-
Specifications
Model/Specification | FA-500TXF-MY |
---|---|
Printing Color | 1 |
Productivity/Hour | 720 pcs/hr |
Machine Size (cm) | L:116 W:92 H:190 |
Air Source Pressure (kg/cm2 psi) | 4~6 |
Rated Current | 5A |
Power Supply (V) | 220V, Single phase |
Max. Printing Area (mm) | 400x300 |
Left/Right Travel (mm) | 500 |
Max. Workpiece Height (mm) | 0~200mm |
Max. Screen Frame Size (cm) | 50*82 |
Screen Frame Front/ Back Fine Adjustment Range (mm) |
±25 |
Table Left/Right Fine Adjustment Range (mm) | ±8 |
Table Left/Right Tilt Range | 10°/50mm |
Independent Squeegee Holder Lift Distance | |
Machine Weight | 250KG |
