FA-400TSN-KY

Suction Type SD Card Screen Printer | Dedicated Equipment for Micro SD Card Printing

FA-400TSN-KY

Suction Type SD Card Screen Printer | Dedicated Equipment for Micro SD Card Printing

Dedicatedly designed for Micro SD card printing. This equipment combines the Standard Screen Printer Core Technology with a dust cover, suction system, and customized flexible detachable fixtures. This configuration effectively reduces dust and printing defects, ensuring precise and stable consistency for every SD card print. It is the optimal choice for a high-efficiency SD card printing machine.
Add RFQ RFQ results

Product Info



FA-400TSN-KY Suction Type SD Card Screen Printer | Dedicated Equipment for Micro SD Card Printing

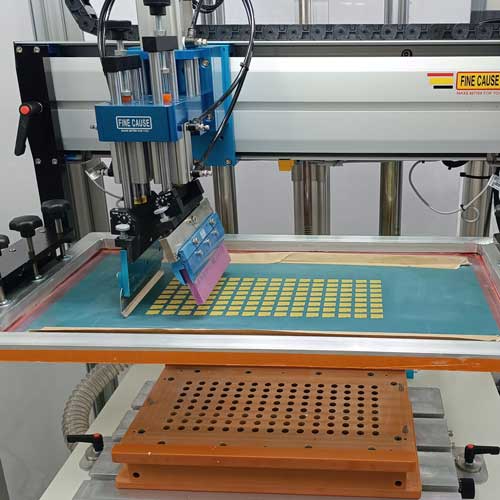

The FA-400TSN-KY is a combination of a standard screen printer with a customized suction device, a dust cover, and dedicated fixtures to meet the printing demands for Micro SD cards. Through the fixture's positioning and manual flip operation, SD card printing becomes more stable and convenient.

The flexible, detachable fixture allows for application to various parts and flat materials simply by changing the fixture, diversifying its usage. Fine Cause provides highly stable and high-efficiency printing solutions.



Standard Screen Printer Core Advantages:

  • 7" Color TFT Touch Screen:

    • Displays sensor positions across the entire area.

    • Abnormal alarm marquee reminders.

    • Automatic low air pressure warning.

    • Allows setting squeegee/screen usage counts for automatic shutdown protection.

  • PLC Programmable Controller:

    • Easy for functional expansion and modification.

    • Displays servo operation position.

    • Stores multiple recipe settings for quick switching between different printing requirements.

  • Patented Magnetic Squeegee Clamp (Patent No. M390871):

    • Allows easy sliding and disassembly, supporting quick replacement.

  • Pneumatic Squeegee Holder Vertical Lift:

    • Prevents deviation caused by manual lifting.

    • Reduces ink deviation and improves screen cleaning efficiency.

  • Servo Drive System:

    • Squeegee and platform movement is fast, stable, and low noise.

  • Screen Frame Lift uses Pneumatic Brakes:

    • Quiet, fast, and maintenance-free.

  • Multi-Language Operating Interface:

    • Includes Traditional Chinese, English, Indonesian, Vietnamese, and Thai.

  • Smart Production History (Data Tracking):

    • 30 days of production capacity, operating time, and production speed are clear at a glance/clearly tracked.



Customized Exclusive Configuration

Dust Cover + Suction System + Customized Fixtures, Dedicatedly Built for SD Card Printing

  • Floor-standing Dust Cover.

  • 1HP Suction Device and Collection Box.

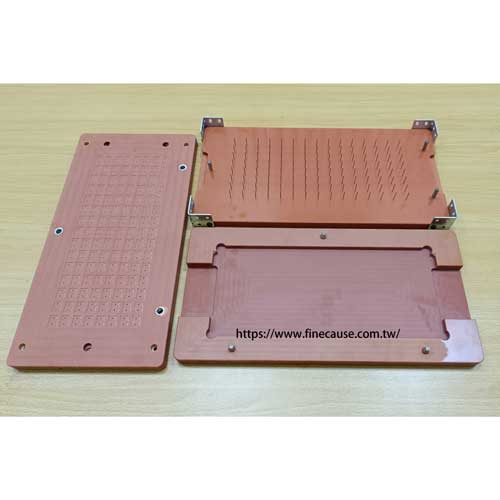

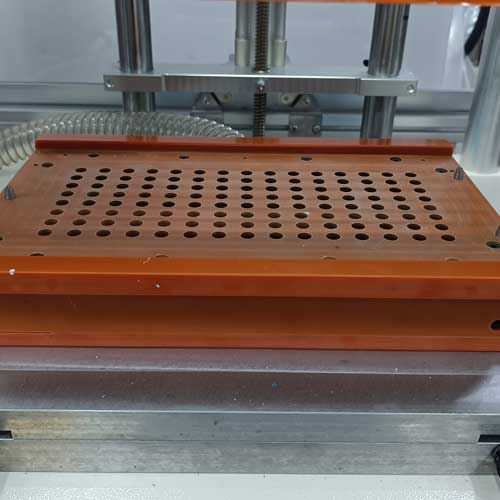

  • Dedicated Micro SD Card (15×11mm) Printing Fixture.

  • Manual Unloading Fixture.

  • Manual Flip Fixture.

These customized configurations combine perfectly with the standard screen printer to create a suction screen printer solution. They effectively suppress dust influence and maintain the clean surface of the SD card, ensuring stable quality.



Application Areas and Advantages

  • Applicable to Micro SD cards, SD cards, and various other parts and flat material printing.

  • The dust cover and suction system effectively reduce printing defects.

  • Fixtures can be customized according to production line needs, facilitating quick machine setup adjustments and reducing production costs.

  • Servo drive combined with fixed positioning ensures consistency in every SD card print.

Want to build a high-efficiency, stable, and dust-proof printing production line? Contact us immediately to receive a complete solution for your product!

Specifications

Model/Specification
FA-400TSN-KY
Suction Type SD Card Screen Printer
Printing Color
1
Productivity/Hour
600~1800
Machine Size (cm) (Including Cover)
L:130 W:90 H:189
Air Source Pressure (kg/cm² psi)
4~6
Rated Current (A)
5A
Power Supply (V)
220V, Single phase
Table Size (mm)
320 x 500
Max. Printing Area (mm)
300 x 300
Max. Workpiece Height (mm)
200
Left/Right Travel (mm)
400
Table Lifting Height (mm)
0~150
Max. Screen Frame Size (cm)
50 x 72
Screen Frame Front/
Back Fine Adjustment Range (mm)
±25
Table Left/Right Fine Adjustment Range (mm)
±8
Table Left/
10°/50
Right Tilt Range /
Independent Squeegee Holder Lift Distance
(mm)

Machine Weight
350 KG
