Laser Engravers/CO2 Laser Engraving Machine/CO2 Laser Engravers

BFC-08013-C30CK

BFC-08013-C30CK

Laser Engravers/CO2 Laser Engraving Machine/CO2 Laser Engravers

The BFC-08013-C30CK CO₂ Laser Engraving Machine is the ideal solution for engraving acrylic and is also suitable for fabric, leather, paper, wood, bamboo, plastic, rubber, silicone, dual-color boards, and more. It uses non-contact processing, which does not damage or contaminate materials. No need for time-consuming and costly mold making or screen plate development.

Add RFQ RFQ results

Product Info

BFC-08013-C30CK

Laser Engravers/CO2 Laser Engraving Machine/CO2 Laser Engravers

Features of the CO2 Laser Engraving Machine:

Compatible with a wide range of materials: acrylic, fabric, leather, paper, wood, bamboo, plastic, rubber, silicone, dual-color boards, etc.
Equipped with a high-quality laser source and galvanometer scanning system for efficient engraving.

Stable laser power output, with adjustable pulse frequency controlled via engraving software.
Multi-hole platform design makes it easy to secure fixtures.
Non-contact processing avoids surface contamination.

Important Note When Engraving Acrylic with a CO2 Laser:

Acrylic materials come in two types, and the engraving results differ significantly:

▲ Cast Acrylic:

Made by pouring liquid acrylic into molds.

Higher cost, better quality, and harder material.

Engraves with a white, frosted effect — ideal for signage and artistic products.

▲ Extruded Acrylic:

Produced through mechanical extrusion, more cost-effective and softer.

Engraving results are clearer/transparent, not white.

Better uniformity, but not recommended if you want a white engraving effect.

👉 To achieve a white engraving effect, we recommend using Cast Acrylic Sheets.

The material's properties cause it to frost or whiten under CO2 laser engraving, producing sharp and high-contrast results — perfect for signage, decorative plates, creative products, and artwork.

Creative Applications with CO2 Laser:

🔳 Even QR codes can be engraved! Link to photo albums, catalogs, menus, websites — endless creativity, limitless business opportunities!

Advantages of Laser Engraving:

Delivers fine and detailed designs with high clarity.
Resistant to fading from touch, friction, or cleaning.
Works on uneven or textured surfaces due to non-contact engraving.
Eliminates the need for traditional molds or printing plates.
Supports small-batch production with flexible content customization.

Laser Engraving Machines	Fiber Laser Engraving Machine	UV Laser Engraving Machine	CO2 Laser Engraving Machine
Laser Spot Size	0.03 mm	0.03 mm	1.8 mm
Laser Wavelength	1064 nm	355 nm	9.3μm~9300nm
	The commonly used wavelength for fiber laser is 1064 nm, which falls within the near-infrared range.	Highly absorbable by a wide range of materials, enabling full-color marking.	CO2 laser is the only option for engraving on acrylic; highly suitable for signage, displays, and nameplates.
	Fiber lasers often use ytterbium-doped (Yb) fibers for higher beam quality.	Allows micro-engraving and minimal thermal damage to surfaces or interiors.	Wavelength is easily absorbed by transparent materials, often used for engraving on thin films.
	The excitation wavelength for fiber lasers is usually 915 nm or 976 nm, but the stable output wavelength is 1064 nm.
Engraving Area	100100 mm or 200200 mm (flat)	100100 mm or 200200 mm (flat)	110110 mm or 175175 mm (flat)
Practical Applications	High wavelength absorption makes it ideal for metal marking (e.g., black marking, oxidation, surface polishing), stainless steel, aluminum, copper, ceramics, etc.	Ideal for high-precision devices and a variety of non-metal materials: wood, glass, crystal, leather, ceramics, paper, plastic, printed boards, etc.	Suitable for engraving on acrylic, fabric, leather, paper, wood, bamboo, plastic, rubber, silicone, dual-color boards, etc.
Common Advantages	1. Fine graphics are clearly and sharply presented
	2. Resistant to fading from rubbing, scratching, and wiping
	3. Non-contact engraving allows marking on uneven surfaces
	4. No need for plate or mold development, saving time and cost
	5. Small batch production with flexible engraving content

Specifications

Specification	BFC-08013-C30CK- CO2 Laser Engraving Machine
Laser Power	30W
Laser Type	CO2 Laser Tube (9.3μm)
Control System	Golden Orange (User-friendly interface)
Operating Voltage	220V, 50Hz
Power Consumption	≤600W

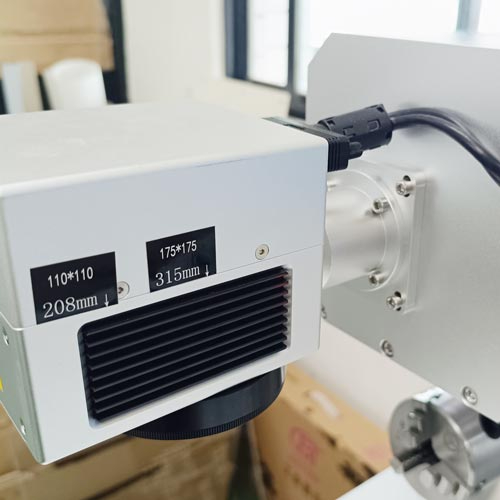

Engraving Area	110110 mm or 175175 mm (flatbed)
Engraving Speed	≤7000 mm/s (depending on material and desired effect)
Focusing Method	Manual
Positioning Accuracy	<0.01 mm
Minimum Engraving Size	2*2 mm
Communication Interface	USB
Supported File Formats	DXF, BMP, PLT, AI, JPG, etc.
Cooling Method	Air cooling
Display Screen	19-inch
Machine Dimensions	8060173cm (LWH)
